Item # 07-0006 Model O2
Single Channel Tabletop Oxygen Analyzer
The Model O2 is a versatile research grade oxygen analyzer for measuring 5-100% oxygen concentrations. The unit includes an integrated gas sampling pump, flow controller, bright LED display for oxygen concentration and status indication, touch panel controls for ease of operation, 0-1Volt DC analog and a terminal strip with relay outputs and a 4-20ma analog output, a separate digital RS-232 output, and Luer type front panel connection for response times. The front panel allows control of flow, alarm set-points, calibration, and other user features. The Model O2 can be used in research and other applications but not approved for human medical use or diagnostics. Oxigraf OxiSoft software is also included with the unit for computer display and data logging under Windows.
Features
Precision Oxygen Analysis for Research and Industrial Applications
The Model O2 is a research-grade, single-channel tabletop oxygen analyzer designed for high-precision measurement of oxygen concentrations ranging from 5% to 100%. With an integrated gas sampling pump and advanced laser diode technology, this unit provides fast, reliable, and accurate oxygen analysis for laboratory, industrial, and safety applications.
XC and LN Modes for Enhanced Accuracy
The Model O2 includes XC (Cross Calibration) Mode and LN (Laser Normalization) Mode, providing flexibility for different measurement conditions: LN Mode (Laser Normalization Mode): Optimized for nitrogen-based gas mixtures, this mode provides high-precision readings with a stability of ±0.2%, ensuring minimal drift in controlled environments. XC Mode (Cross Calibration Mode): Designed for applications involving complex gas mixtures, including noble gases, hydrocarbons, fluorocarbons, CO₂, and N₂O, this mode ensures accurate oxygen readings even in varying background gas compositions, with a stability of ±0.4%.
Fast & Reliable Oxygen Measurement
The Model O2 utilizes laser diode absorption technology, delivering precise oxygen concentration readings with an accuracy of ±0.2% (LN mode) and a rapid response time of 150 milliseconds at a 250 mL/min flow rate. Unlike electrochemical sensors, it provides consistent performance without frequent calibration or sensor replacement, reducing downtime and maintenance costs.
Integrated Sampling Pump for Continuous Monitoring
A built-in sampling pump ensures constant gas flow and accurate readings, making it ideal for laboratory research, industrial gas analysis, and safety monitoring applications. The unit’s microprocessor-controlled flow sensor maintains stability, while a hydrophobic filter prevents contamination and extends the device’s lifespan.
Multiple Output Options for Seamless Integration
The Model O2 supports analog (0-1V DC, 4-20mA) and digital (RS-232) outputs, allowing for easy integration into automation systems, laboratory data acquisition setups, and industrial control platforms. These flexible output options enable real-time monitoring and remote data logging.
Compact, Durable, and Reliable
Designed for tabletop use, the Model O2 is compact and lightweight (7.5 x 3.0 x 11.0 inches, 5 lbs) while maintaining industrial-grade durability. With no moving parts, it resists mechanical vibration and environmental disturbances, ensuring long-term reliability in demanding research and industrial environments.

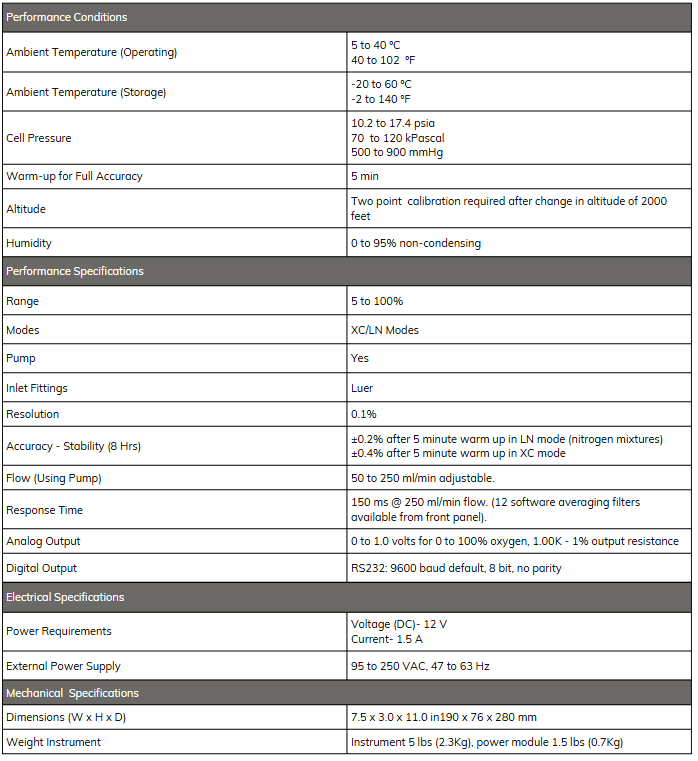

Technical Data
