Item # 07-7035 Model O2Cap(AL)
Item # 07-7037 Model O2Cap(AL)-S
Oxygen and CO2 Analyzer
The O2Cap family integrates an Oxigraf oxygen sensor with a NDIR CO2 sensor for dual gas measurements for research, industrial and laboratory measurements. Measure Oxygen concentrations from 5-100% and CO2 from 0-10%. Perform capnography tests with fast breath by breath measurement. The units come with a pump for gas sampling system, bright vacuum fluorescent alphanumeric display (VFD), touch panel keypad, a rear 0-1VDC analog output for O2 readings, and either a rear terminal strip with limit detection relays and 4 – 20 mA analog outputs or a second CO2 analog output, and a RS232 digital interface.
Model O2 Capnography versions
#07-0193 O2Cap comes with LUER fitting and gas sampling pump.
#07-0387 O2CapB replaces Terminal Strip w/ second BNC analog output for CO2 on the regular O2Cap.
#07-7035 O2Cap(AL) comes with CPC O-ring fitting & gas sampling pump to handle lower pressure inputs.
#07-7037 O2Cap(AL-S) comes with Swagelok fittings
Features
Self-Calibrating Oxygen & CO₂ Analysis for Continuous Monitoring
The Cap Series analyzers utilize laser diode absorption technology to deliver high-speed, high-accuracy CO₂ and O₂ measurements for medical ventilation, anesthesia monitoring, and industrial gas analysis. Designed for continuous, real-time gas monitoring, these compact and energy-efficient analyzers provide fast response times, long-term stability, and seamless OEM integration, making them an ideal choice for critical care and industrial applications.
Ultra-Fast Response Time for Real-Time Monitoring
With a sub-150 millisecond response time, the Cap Series delivers near-instantaneous detection of CO₂ and O₂ concentration changes. This rapid measurement capability ensures precise real-time ventilation monitoring, enabling immediate adjustments in anesthesia, emergency medicine, and industrial process control
Self-Calibrating for Long-Term Stability
Unlike sensors that require frequent recalibration, the Cap Series features a self-normalizing system that maintains accuracy over extended periods. This eliminates downtime due to manual calibration, ensuring continuous, reliable operation in high-demand medical and industrial environments.
High Accuracy in Complex Gas Mixtures
Designed to maintain precise readings even in the presence of multiple gases, the Cap Series ensures stable and interference-free measurements in anesthesia monitoring, respiratory care, and industrial CO₂ monitoring. This makes it a trusted solution for applications requiring consistent accuracy in varying gas conditions.
Compact & Low-Power for Seamless OEM Integration
With a lightweight, energy-efficient design, the Cap Series is optimized for integration into portable medical ventilators, anesthesia machines, and industrial monitoring systems. Its low power consumption makes it an excellent choice for battery-powered and mobile applications, ensuring continuous monitoring without excessive energy demands.
Long-Term Reliability Without Sensor Degradation
Built for continuous operation, the Cap Series is engineered to provide years of stable performance without sensor drift or degradation. This reliability ensures consistent gas analysis in life-critical applications, reducing the need for frequent replacements or recalibrations.
Versatile Data Outputs for Easy System Integration
Featuring both analog (0-1V DC) and digital (RS-232) outputs, the Cap Series allows seamless integration into medical monitoring systems, industrial process controls, and laboratory data acquisition platforms. These multiple output options ensure compatibility with a wide range of existing systems.

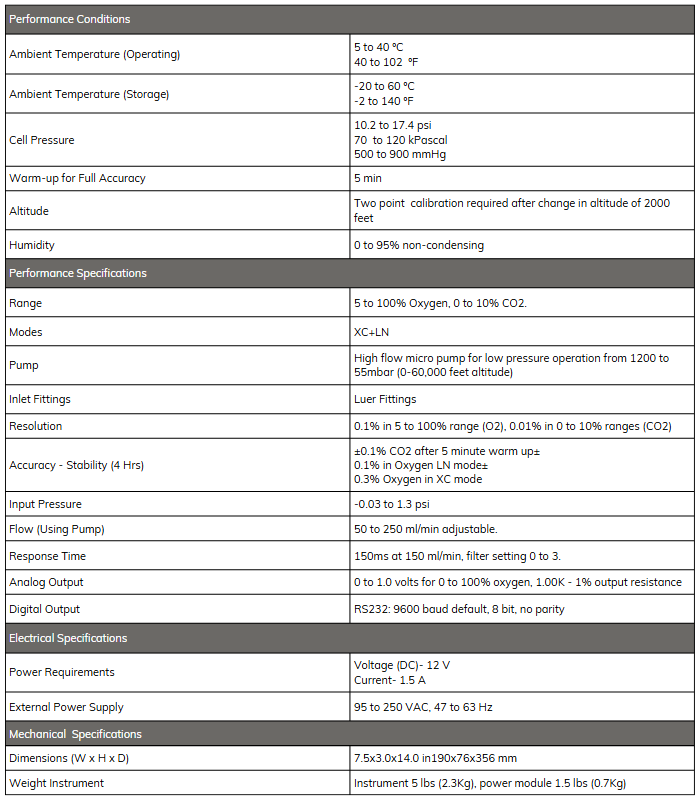

Technical Data
